HUGE LS PART COMPARISON/DIMENSIONS/PART # POST

This is a large group of LS part variations comparisons showing their applications and their measurements, along with many other things below such as..... -Accessories and their spacing/dimensions -LS harness plug types and part numbers for them -AC compressor size comparisons -Alternator comparisons -Intake port differences -Fuel injector dimensions/connectors/adapters you may need -AN/NPT thread dimensions -Gen 3 vs Gen 4 rods, valley cover, and front cover differences -Supercharger comparisons -S10 LS swap oil pan comparisons

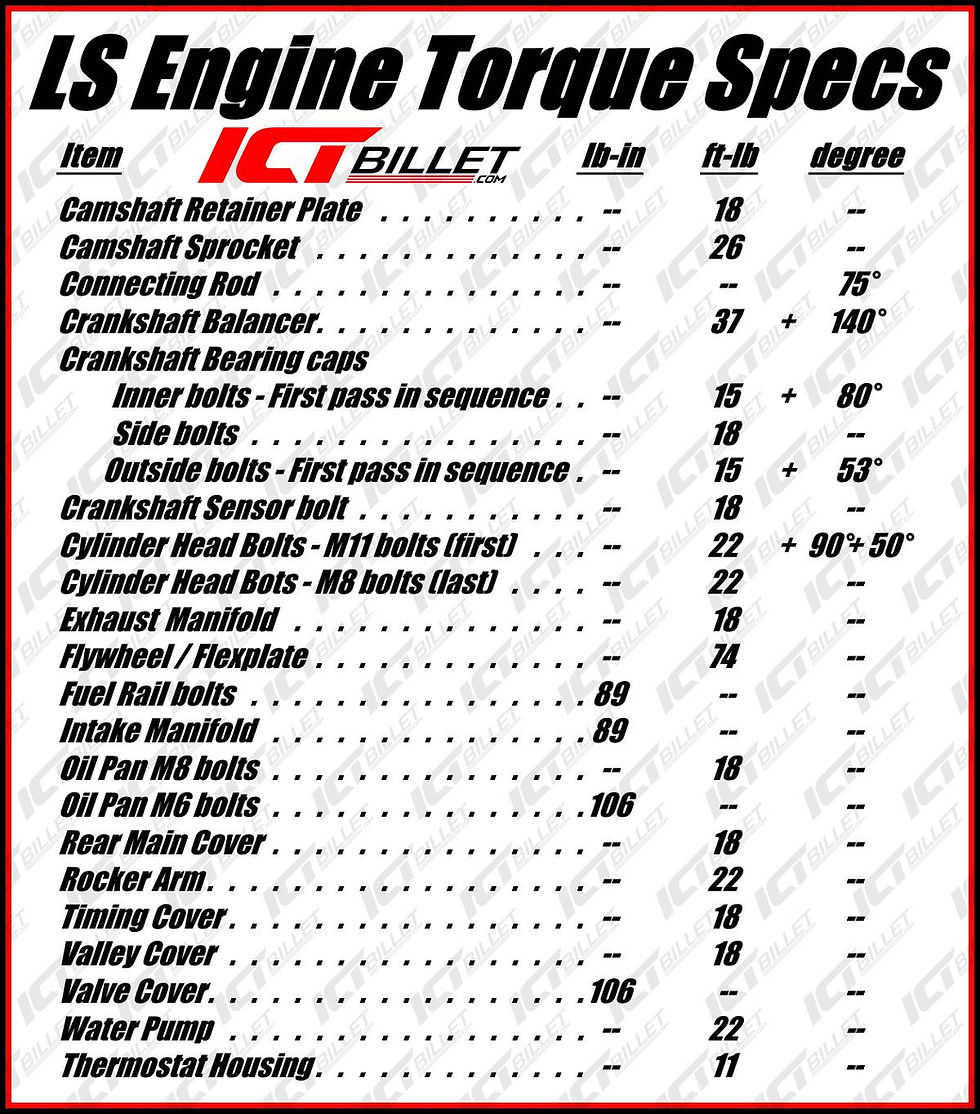

-Throttle Body comparisons -LS engine torque specs

-4l60e/4l80e/th400 sizes
